Firestopping and Fire Doors After a Renovation: Restoring Fire Separation
Short answer: a fire-rated wall or floor holds fire and smoke in one compartment only while its openings are sealed and its doors close. A renovation that runs new services through rated elements, or changes doors on escape routes and compartment lines, breaks that separation unless each opening is restored with a tested system and each door assembly stays intact. Find the rated elements before work starts, seal every crossing to a tested configuration, and photograph each one before it is covered.
Rated walls and penetrations

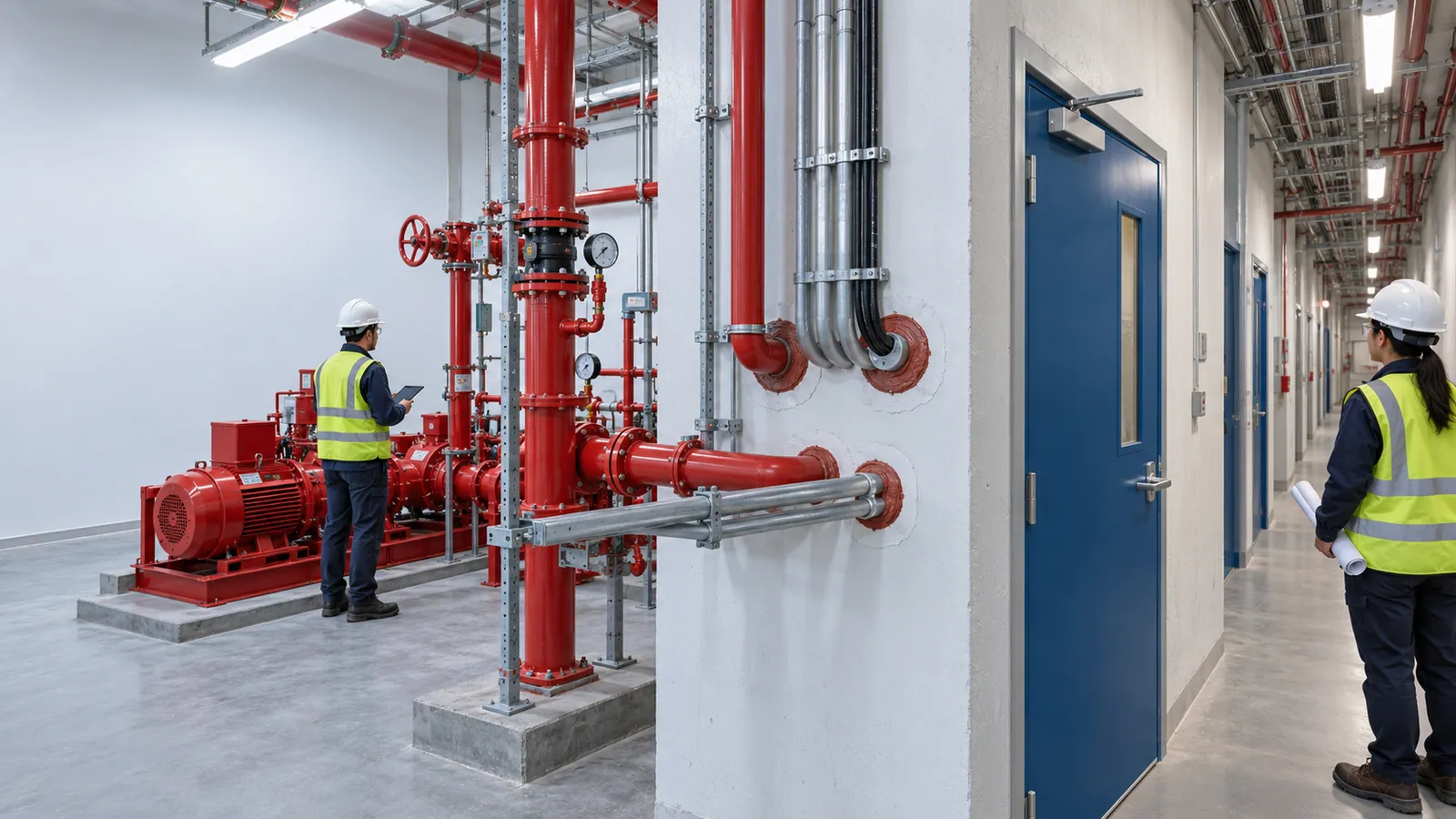

NBC 2016 Part 4 covers compartmentation and openings in fire-resistant walls and floors. BIS's guide to the code summarises the intent: fire-resistant walls, floors and compartments limit the spread of fire, openings such as shafts and vertical openings must not compromise them, and shafts carrying services have fire-resistance-rated inspection doors. The approved fire drawings show which elements are rated and to what. Mark them on site before any coring starts, because a renovation crew sees a partition, not a compartment line.
| Item | What to record for each opening | Why it matters |
|---|---|---|
| Rated element | Wall, floor or shaft reference and its rating from the approved drawings | The seal must restore that rating |
| Construction | Masonry, concrete or drywall, and thickness | Test configurations are specific to the element |
| Penetrating service | Cable bundle, tray, conduit, metal pipe, plastic pipe, insulated pipe, duct, busbar | Each needs a different sealing method |
| Size and gap | Service size and the annular gap around it | Tested systems cover a range of sizes and gaps only |
| Firestop system | Product and the tested configuration it is installed to | Evidence that the seal matches a test |
| Ducts | Fire damper where the design requires one, with access for testing | A duct needs a damper, not just sealant around it |
| Installer and date | Who sealed it and when | Responsibility if it is disturbed later |
| Photograph and label | Photograph before close-up; a numbered label on site | Proof once the ceiling or board closes |
Approved tested systems
A firestop is not a product but a tested assembly: the sealing material, the service passing through, its size and material, the wall or floor construction and thickness, and the gap around the service, installed the way the test was run. Change one of those and the test no longer covers it. In practice:
- Plastic pipes soften and burn away in a fire, leaving an open hole; they need a collar or wrap that closes the opening as the pipe melts.
- Insulated pipes need a system tested with that insulation, or the insulation interrupted and the seal made to the pipe as the test requires.
- Cable trays and bundles need a system rated for the cable fill; packing more cables through later disturbs it.
- Ducts crossing rated elements are dealt with by the fire and smoke dampers the design specifies, with access to inspect and reset them.
Get each configuration approved by the designer before installation, using the manufacturer's test evidence, and do not mix products from different systems in one opening.
Door interfaces
A fire door is an assembly — leaf, frame, hinges, closer, latch, seals, glazing and signage — and renovations change parts of it. The decision table sets out the usual changes.
| Change during renovation | Risk | What to do |
|---|---|---|
| New hardware or locks | Hardware outside the tested assembly; door no longer latches | Use hardware covered by the door's certification; check closing and latching |
| Access control added to an escape door | Door does not release when people need to escape | Interface with the fire alarm so the door releases, with manual override, as the approved scheme requires |
| Hold-open for convenience | Door wedged open; compartment open in a fire | Remove wedges; fit hold-open devices that release on alarm only where the scheme allows |
| Vision panels, louvres or cut-downs | Leaf altered outside its test | Replace with a certified leaf configured as needed |
| Floor finish raised or lowered | Gap under the door changes | Check the gap against the door's certification and adjust the door, not the seal |
| Repainting | Intumescent seals painted over | Mask or replace the seals |
| Door replaced in a rated wall | Non-rated door installed | Specify the rated door from the schedule, with its label kept visible |
Photo records and inspection responsibilities
Once a ceiling or board closes, the only evidence of a correct seal is the record. Keep a penetration register — the checklist above, one line per opening, with its photograph — and a door schedule updated for every change. Assign responsibilities before work starts:
- Designer or fire consultant: marks the rated elements and approves each firestop configuration and door change.
- Each trade, or one firestopping contractor: seals every opening it makes, to the approved configuration, and photographs it.
- Main contractor: holds an inspection before close-up as a hold point, and keeps the register.
- Owner or facility manager: keeps the register after handover and requires future works to reinstate what they disturb, through the permit-to-work.
The records matter after handover too. Haryana's fire Act requires an annual self-declaration that the building has not been altered (section 19(6)), and Delhi's yearly Form K declares that no additions or alterations affecting fire safety or the means of escape have been made. A renovation that opened rated walls is exactly what those declarations ask about, and the register is how an owner can sign them truthfully. The approvals side of a renovation is covered in fire NOC planning for new and renovated buildings.
Budget the work with the MEP renovation budget calculator; fire systems and their integration are under our fire-fighting systems services. To have a fit-out reviewed, send the approved fire layout, the proposed changes and the building particulars through the scope review form. More guides are in Insights.
Sources and how to verify
- National Building Code of India 2016 and the BIS guide to using NBC 2016 — Bureau of Indian Standards; Part 4, Fire and Life Safety (compartmentation, openings in fire-resistant walls and floors, shafts).
- Haryana Fire and Emergency Services Act, 2022 — section 19(6), annual self-declaration.
- Delhi Fire Service (Amendment) Rules, 2025 — Delhi Gazette, 26 May 2026; Form K yearly declaration.
Confirm locally: the ratings on your approved fire drawings, the test evidence for each firestop and door configuration from the manufacturer, and what your state's fire authority requires when rated elements are altered.
Frequently asked
What information do I need before planning firestopping for a renovation?
The approved fire drawings showing which walls, floors and shafts are fire-rated and their ratings; the services the renovation will run through them, with types and sizes (cable trays, conduits, metal and plastic pipes, insulated pipes, ducts, busbars); the door schedule with each door's rating and hardware; the firestop products proposed, with the test evidence for each configuration; and the programme, so sealing is inspected before ceilings and boards close.
Which site conditions can change the scope or cost of firestopping and fire-door work?
Old, unsealed openings found once ceilings are opened; trays and pipes packed so tightly that no tested seal fits; plastic pipes that need collars rather than sealant; walls whose construction or rating cannot be confirmed; fire doors with missing labels or certification; access-control hardware to be added to doors on escape routes; and an occupied building where work has to be phased around operations.
What should I send an engineer to review fire separation after a fit-out?
The approved fire layout and any fire NOC or certificate conditions, the fit-out drawings, photographs of each penetration before it was covered (or access to inspect), the door schedule and any door changes, and the data sheets of the firestop products used. With these an engineer can identify the openings that are not restored to a tested configuration and scope the remedial work.
Can any fire-rated sealant be used for any penetration?
No. A firestop is rated as a tested system: the product, the penetrating service, its size and material, the wall or floor construction and thickness, and the gap around the service. A sealant tested around a steel pipe in a masonry wall says nothing about a plastic pipe through a drywall partition, which may need a collar that closes the opening as the pipe melts. Match each opening to a configuration the manufacturer's test evidence covers, and do not mix products within one seal.
