Can Your Existing Panels and Cables Carry the New Machines?

Short answer: existing panels and cables can take new machinery only if four checks all pass. The measured demand plus the new load must fit the transformer, the panel and the cable at a realistic power factor; the equipment's ratings and condition must support the extra current; the protection must still clear faults correctly at the new fault level; and the supply contract must allow the new maximum demand. The answer is then reuse, extend or replace, component by component — rarely all one or the other.

A spare way on a distribution board is not spare capacity. It says nothing about whether the busbar, the incomer, the cable feeding the board or the transformer upstream can carry more current, and treating it as spare capacity is how an expansion ends up tripping on its first full shift.

1. Measure the demand you actually have

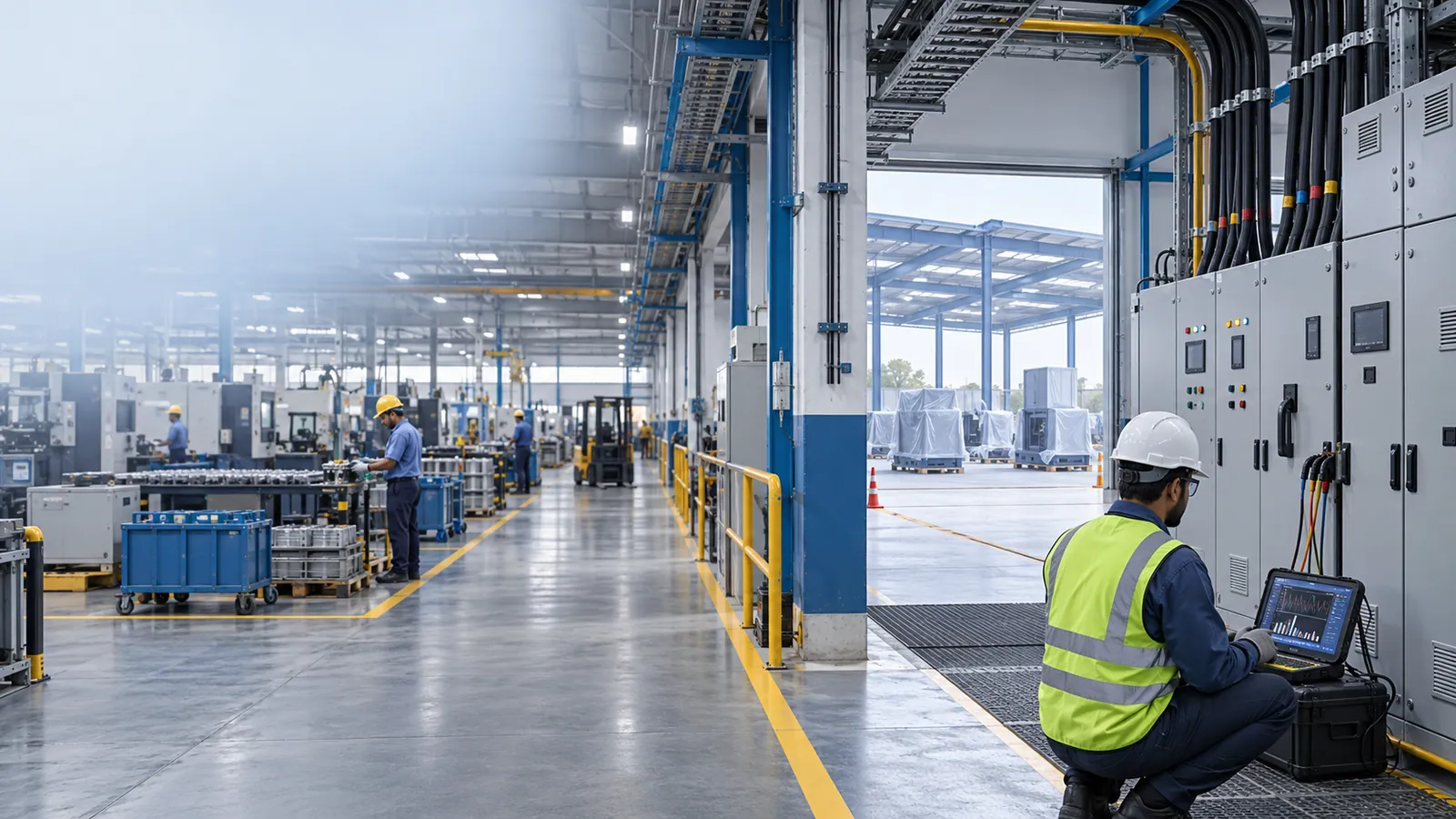

Connected load — the sum of nameplate ratings — overstates what a factory draws, because machines do not all run at full load together. Maximum demand is what the supply actually sees, and it should be measured rather than estimated. The checklist sets out what to measure, where, and what each reading decides.

The transformer check is arithmetic once those numbers exist: required kVA = (measured peak kW + new coincident kW) ÷ power factor, compared with the transformer's rating at the utilisation you are prepared to load it to. The factory electrical spare-capacity calculator does exactly that, and shows a shortfall as a negative number rather than rounding it away. It deliberately says nothing about cables, breakers, protection, fault level, voltage drop or the DISCOM's sanctioned load; the rest of this guide covers those.

2. Check ratings and condition, component by component

• Transformer. Rating, age, temperature at peak load, and the condition its test records show. A nameplate rating is not a statement of fitness.
• LT panel. The incomer and busbar current ratings, the short-time withstand rating in kA for the stated duration, the form of separation, and the physical space for new outgoing feeders. Panel builders verify assemblies against the IEC 61439 series; ask for the verification records rather than inferring a rating from the size of the enclosure.
• Breakers. Frame size, trip settings and rated breaking capacity at the point where each one is installed.
• Cables. Size, conductor and insulation — PVC-insulated heavy-duty cables are made to IS 1554 and XLPE-insulated cables to IS 7098 — and how they are laid. A cable's usable current is its rating corrected for the installation method, grouping with other cables and ambient temperature, so a cable that was adequate alone on a tray may not be once three more circuits share it. Length sets the voltage drop. Condition is a test result, not an age.
• Power factor correction. The APFC panel's kVAr, its steps, and whether drive-heavy new loads will push harmonics into resonance with the capacitors; detuned reactors may be needed.
• Earthing and standby. Measured earth values, and whether the DG set and changeover can still carry the essential loads once the new machines are added.

IS 732:2019, the BIS code of practice for electrical wiring installations, covers the selection and erection of equipment and the initial and periodic verification of installations; the verification records it calls for are what a reuse decision should rest on. Containment is often the real limit on a new route — see cable trays that were full on day one.

3. Protection and fault studies

New load changes how the system behaves when something goes wrong, not just how much current flows when everything is healthy.

• Fault level. A larger transformer, a second one in parallel, or a new source such as a DG set or a solar inverter raises the prospective fault current. Every existing breaker must be able to break the fault current at its own location; one that cannot is a hazard however lightly it is loaded.
• Discrimination. The device nearest a fault should trip first, and alone. Changing a breaker or its settings to suit a new load can upset its coordination with the devices upstream. NBC 2016 Part 8, Section 2 covers discrimination, cascading and limitation in coordinating protective devices.
• Motor starting. Large motors started direct-on-line draw several times their running current and dip the voltage for everything else on the board; soft starters and drives change both the dip and the harmonic picture.
• Earth-fault protection. New circuits need protection that operates within the required time at the fault current the earthing system can actually deliver.

The work itself is regulated. Under the CEA (Measures relating to Safety and Electric Supply) Regulations, 2023, additions and alterations must be carried out by a contractor licensed by the state government (regulation 31), and an addition or alteration may not be connected to supply until it has been approved in writing by the Electrical Inspector or self-certified, as the case may be (regulation 45(6)). Which route applies depends on the voltage your state has notified; the Electrical Inspector approval guide explains the inspectorate side.

4. Reuse, extend or replace: the decision table

With the measurements, ratings and studies in hand, each component gets its own answer. The table sets out when each answer applies.

The supply contract is a separate ceiling

An expansion can fit the transformer and still exceed the contract demand the DISCOM has sanctioned. Contract demand is a commercial limit with its own application process, and sometimes a change of supply voltage. PSPCL's FAQ, for example, defines contract demand as the maximum demand in kVA sanctioned to the consumer, says applicants with a demand above 100 kVA are usually given an HT connection, and requires a feasibility clearance first where the new total demand exceeds 2,000 kVA. Other DISCOMs use their own thresholds, so check the current supply code. See HT connections and substations for high-load facilities and Punjab factory power and MEP realities, and size a replacement with the transformer sizing calculator and the cable size calculator.

Under a turnkey EPC scope, the measurement, the reuse-or-replace decisions and the inspectorate and DISCOM paperwork are handled together; the electrical infrastructure service covers the panels, cables and substations themselves. For the outage needed to make the changes, see factory shutdown planning and the cost of lost production. More guides are on Insights, or you can share the existing and proposed loads, layout and production constraints for a review.

Sources and how to verify

• Central Electricity Authority (Measures relating to Safety and Electric Supply) Regulations, 2023, notified 8 June 2023 — regulations 31 and 45.
• FAQs on new connection and extension of load, Punjab State Power Corporation Ltd — one DISCOM's definitions and thresholds, quoted as an example.
• Indian Standards on the Power/Energy Sector, Bureau of Indian Standards — IS 732:2019 (wiring installations) and the cable standards IS 1554 and IS 7098.
• Guide for Using NBC 2016, Bureau of Indian Standards — Part 8, Section 2 (Electrical and Allied Installations).
• Standards and Labelling programme, Bureau of Energy Efficiency — distribution transformers in the mandatory regime.

Confirm locally: the voltage your state has notified for inspection by the Electrical Inspector, what the Inspector needs for your alteration, your DISCOM's current supply code and load-extension procedure, and the scope of BEE's transformer labelling for the rating you buy.
